This unsupported macbook from Apple is already 11 years old, but still is a good decent hardware. Current MacOS feels too much for it, so i went the Linux path.

First i did try Slackware, which was ok but performance wasn’t that great, fans were kicking in all the time so it was not perfect.

I moved to OpenBSD, which was great! But, it is OpenBSD so very restricted and things like bluetooth or camera didn’t work. Also simple task like casting a tab to a chromecast is not possible. Anyway, I did stay with OpenBSD for at least 3 releases, but the last 2 releases did broke the boot process and to fix it did require editing acpi.c and compiling the kernel. They do have a bug open but for sure the focus of the devs is on silicon devices from Apple.

Some days ago, i read a post about this arch base distro name CachyOS, which has a focus on speed and performance, and i decided to give it a shot.

What a surprise!

This 11 years old laptop feels awesome! Is fast, responsive, i barely hear the fans now and doesn’t need mayor tweaking besides the wifi.

How to make the wifi works properly:

To install CachyOS you need ethernet cable or a wifi dongle, as the integrated wifi based on the chipset BCM43602 is available but connecting to a network is not possible, because the password is constantly requested.

Once CachyOS is installed, add the following file

/etc/modprobe.d/brcmfmac.conf

1

options brcmfmac feature_disable=0x82000

Also, to get an extra boost on the performance of this chipset, the following file needs to be added to /usr/lib/firmware/brcm/brcmfmac43602-pcie.txt

Is only required to adjust macaddr with your mac address, and ccode with your country code (my case NL)

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256

sromrev=11
subvid=0x14e4
boardtype=0x61b
boardrev=0x1421
vendid=0x14e4
devid=0x43ba

macaddr=xx:xx:xx:xx:xx:xx

ccode=NL
regrev=245

boardflags=0x10401001
boardflags2=0x00000002
boardflags3=0xC0000303
boardnum=62526

swctrlmap_2g=0x08080808,0x04010401,0x08080808,0x00000000,0x000000ff
swctrlmapext_2g=0x00000000,0x00000000,0x00000000,0x000000,0x003

swctrlmap_5g=0x08080808,0x04010401,0x08080808,0x00000000,0x000000ff
swctrlmapext_5g=0x00000000,0x00000000,0x00000000,0x000000,0x003

aa2g=7
aa5g=7
agbg0=133
agbg1=133
agbg2=133
aga0=71
aga1=71
aga2=71
txchain=7
rxchain=7
antswitch=0
tssiposslope2g=1
epagain2g=0
pdgain2g=28
tworangetssi2g=0
papdcap2g=0
femctrl=2
tssiposslope5g=1
epagain5g=0
pdgain5g=28
tworangetssi5g=0
papdcap5g=0
gainctrlsph=0
tempthresh=120
tempoffset=255
rawtempsense=0x1ff
measpower=0x7f
tempsense_slope=0xff
tempcorrx=0x3f
tempsense_option=0x3
xtalfreq=40000
phycal_tempdelta=40
temps_period=1
temps_hysteresis=5
measpower1=0x7f
measpower2=0x7f
pdoffsetcck=1057
pdoffset20in40m5gb0=0
pdoffset20in40m5gb1=0
pdoffset20in40m5gb2=0
pdoffset20in40m5gb3=0
pdoffset20in40m5gb4=0
pdoffset40in80m5gb0=0
pdoffset40in80m5gb1=0
pdoffset40in80m5gb2=0
pdoffset40in80m5gb3=0
pdoffset40in80m5gb4=0
pdoffset20in80m5gb0=0
pdoffset20in80m5gb1=0
pdoffset20in80m5gb2=0
pdoffset20in80m5gb3=0
pdoffset20in80m5gb4=0
subband5gver=0x5
cckbw202gpo=0
cckbw20ul2gpo=0
mcsbw202gpo=2536714240
mcsbw402gpo=2536714240
dot11agofdmhrbw202gpo=13056
ofdmlrbw202gpo=0
mcsbw205glpo=1966288896
mcsbw405glpo=2252619776
mcsbw805glpo=2252619776
mcsbw205gmpo=1966288896
mcsbw405gmpo=2252619776
mcsbw805gmpo=2252619776
mcsbw205ghpo=1966288896
mcsbw405ghpo=2252619776
mcsbw805ghpo=2252619776
mcsbw205gx1po=1966288896
mcsbw405gx1po=2252619776
mcsbw805gx1po=2252619776
mcsbw205gx2po=1966288896
mcsbw405gx2po=2252619776
mcsbw805gx2po=2252619776
mcslr5glpo=0
mcslr5gmpo=0
mcslr5ghpo=0
mcslr5gx1po=0
mcslr5gx2po=0
sb20in40hrpo=0
sb20in80and160hr5glpo=0
sb40and80hr5glpo=0
sb20in80and160hr5gmpo=0
sb40and80hr5gmpo=0
sb20in80and160hr5ghpo=0
sb40and80hr5ghpo=0
sb20in40lrpo=0
sb20in80and160lr5glpo=0
sb40and80lr5glpo=0
sb20in80and160lr5gmpo=0
sb40and80lr5gmpo=0
sb20in80and160lr5ghpo=0
sb40and80lr5ghpo=0
sb20in80and160hr5gx1po=0
sb20in80and160lr5gx1po=0
sb40and80hr5gx1po=0
sb20in80and160hr5gx2po=0
sb20in80and160lr5gx2po=0
sb40and80hr5gx2po=0
dot11agduphrpo=0
dot11agduplrpo=52416
pcieingress_war=15
sar2g=18
sar5g=15
noiselvl2ga0=31
noiselvl2ga1=31
noiselvl2ga2=31
noiselvl5ga0=18,18,18,20
noiselvl5ga1=1,1,1,17
noiselvl5ga2=11,11,11,11
rxgainerr2ga0=63
rxgainerr2ga1=31
rxgainerr2ga2=31
rxgainerr5ga0=50,50,50,52
rxgainerr5ga1=16,16,16,24
rxgainerr5ga2=5,5,5,5
rpcal2g=65535
rpcal5gb0=65535
rpcal5gb1=65535
rpcal5gb2=65535
rpcal5gb3=65535
rxgains5gmelnagaina0=3
rxgains5gmelnagaina1=3
rxgains5gmelnagaina2=3
rxgains5gmtrisoa0=9
rxgains5gmtrisoa1=9
rxgains5gmtrisoa2=9
rxgains5gmtrelnabypa0=0
rxgains5gmtrelnabypa1=0
rxgains5gmtrelnabypa2=0
rxgains5ghelnagaina0=2
rxgains5ghelnagaina1=2
rxgains5ghelnagaina2=2
rxgains5ghtrisoa0=8
rxgains5ghtrisoa1=8
rxgains5ghtrisoa2=8
rxgains5ghtrelnabypa0=0
rxgains5ghtrelnabypa1=0
rxgains5ghtrelnabypa2=0
gain_cal_temp=39
rssi_delta_2gb0=8,16,8,16,253,18,253,18,254,17,254,17
rssi_delta_2gb1=255,255,255,255,255,255,255,255,255,255,255,255
rssi_delta_2gb2=255,255,255,255,255,255,255,255,255,255,255,255
rssi_delta_2gb3=255,255,255,255,255,255,255,255,255,255,255,255
rssi_delta_2gb4=255,255,255,255,255,255,255,255,255,255,255,255
rssi_cal_freq_grp_2g=0,0,128,0,0,0,0
rud_agc_enable=0
temp_comp_tr_loss=1
rssi_qdB_en=0
rssi_delta_5gl=8,6,8,6,8,6,5,6,5,6,5,6,9,8,9,8,9,8
rssi_delta_5gml=250,237,250,237,250,237,248,236,248,236,248,236,249,237,249,237,249,237
rssi_delta_5gmu=250,237,250,237,250,237,248,234,248,234,248,234,249,237,249,237,249,237
rssi_delta_5gh=250,235,250,235,250,235,247,233,247,233,247,233,249,237,249,237,249,237
rssicorrnorm_c0=251,255
rssicorrnorm_c1=251,255
rssicorrnorm_c2=251,255
trloss_adj_temp_thresh=10
trloss_adj_time_dur=30
rstr_rxgaintempcoeff5gl=50,50,50
rstr_rxgaintempcoeff5gl_elnaoff=44,44,44
rstr_rxgaintempcoeff5gml=50,50,50
rstr_rxgaintempcoeff5gml_elnaoff=44,44,44
rstr_rxgaintempcoeff5gmu=50,50,50
rstr_rxgaintempcoeff5gmu_elnaoff=44,44,44
rstr_rxgaintempcoeff5gh=52,52,52
rstr_rxgaintempcoeff5gh_elnaoff=46,46,46
rstr_rxgaintempcoeff2g_sub=75,75,75,75,75,75,75,75,75,75,75,75,75,75,75
rstr_rxgaintempcoeff2g_sub_elnaoff=66,66,66,66,66,66,66,66,66,66,66,66,66,66,66
length_txcal=65535
version_txcal=65535
devicetype_txcal=65535
caltype_txcal=65535
tempsense_txcal=35
ncores_txcal=255
reserved1_txcal=255
reserved2_txcal=255
20mhz_tbl_len_txcal=65535
nsteps_txcal=22
nchannels_txcal=10
chan_id_txcal_ch0=7
chan_id_txcal_ch1=36
chan_id_txcal_ch2=52
chan_id_txcal_ch3=64
chan_id_txcal_ch4=100
chan_id_txcal_ch5=120
chan_id_txcal_ch6=140
chan_id_txcal_ch7=149
chan_id_txcal_ch8=157
chan_id_txcal_ch9=165
ptssi_txcal_ch0=0
ptssi_txcal_ch1=0
ptssi_txcal_ch2=0
ptssi_txcal_ch3=0
ptssi_txcal_ch4=0
ptssi_txcal_ch5=0
ptssi_txcal_ch6=0
ptssi_txcal_ch7=0
ptssi_txcal_ch8=0
ptssi_txcal_ch9=0
gain_index_c0_ch0=54
gain_index_c0_ch1=57
gain_index_c0_ch2=58
gain_index_c0_ch3=59
gain_index_c0_ch4=60
gain_index_c0_ch5=59
gain_index_c0_ch6=61
gain_index_c0_ch7=60
gain_index_c0_ch8=61
gain_index_c0_ch9=62
gain_index_c1_ch0=54
gain_index_c1_ch1=58
gain_index_c1_ch2=59
gain_index_c1_ch3=60
gain_index_c1_ch4=61
gain_index_c1_ch5=61
gain_index_c1_ch6=62
gain_index_c1_ch7=62
gain_index_c1_ch8=62
gain_index_c1_ch9=62
gain_index_c2_ch0=57
gain_index_c2_ch1=57
gain_index_c2_ch2=59
gain_index_c2_ch3=59
gain_index_c2_ch4=61
gain_index_c2_ch5=60
gain_index_c2_ch6=61
gain_index_c2_ch7=61
gain_index_c2_ch8=61
gain_index_c2_ch9=61
tssi_chan0_c0=248,244,241,237,232,226,220,211,203,193,183,172,162,150,138,128,116,105,94,83,73,61
tssi_chan0_c1=247,245,241,237,232,226,218,210,201,191,181,168,158,146,134,122,111,98,87,75,64,52
tssi_chan0_c2=248,245,242,238,233,227,221,213,204,194,185,173,162,151,140,129,118,107,97,87,77,67
tssi_chan1_c0=234,228,223,218,212,205,198,191,183,176,168,159,150,141,131,121,110,98,87,75,64,53

So far, has been the best distro i have try on this hardware.

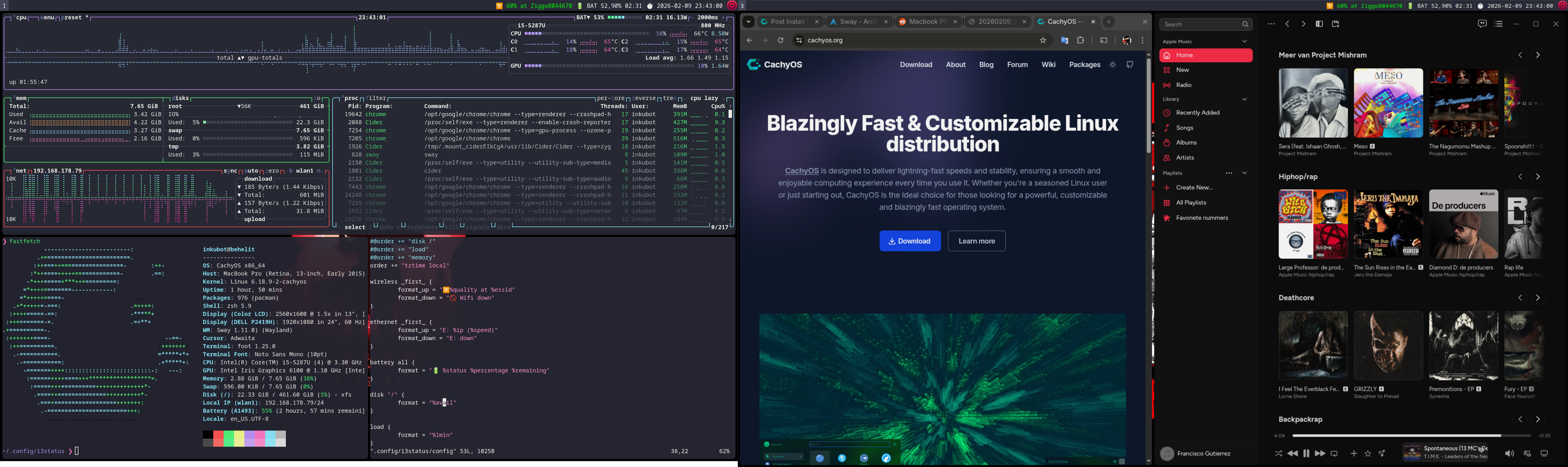

CachyOS SwayFX
